The M-Audio AIR 192|14 is an 8-in 4-out feature-packed USB audio/MIDI interface that provides all of the connections and software you need to easily create professional 24-bit/192kHz studio-quality recordings. The AIR 192|14 features (4) XLR+¼” TRS combo inputs, (2) ¼” line inputs and (2) ¼” instrument inputs that have a specially designed gain and impedance stage to provide the most accurate representation of your guitar or bass when plugged directly into the interface. There is also MIDI input and output connections so you can connect any external midi gear that you may have such as external sequencers, drum machines and controllers.
The AIR 192|14 comes complete with a software package that has everything to get you started making professional recordings right out of the box. With a powerful DAW to suit your production needs, AIR 192|14 includes Ableton Live Lite and MPC Beats. This amazing audio and MIDI recording software will inspire you to create, record and share your ideas across the world at any time.
We’ve also added an entire Effects Plugin, Virtual Instruments and Loop package to cater to all your production needs. Whether you need a guitar tone, reverb, or delay we’ve got your effects needs covered with Revalver, 80 effect plugins and AIR’s Creative FX Collection Plus. With the included AIR Virtual Instrument plugins, you’ll have a virtual drummer, synth, strings, percussion, organ and piano plugins to add world-class-sounding instruments to your songs with ease.
When recording, you want to focus on capturing that perfect moment, and getting the best performance out of your artist and talent. You don’t want to be bogged down by “clicks,” “pops” or latency. The AIR 192|14 not only features a high-speed USB connection for providing the lowest round trip latency (2.59ms*) between your machine and your hardware, but it also features monitor mix control for listening directly to the source inputs, providing you with zero-latency technology.
The AIR 192|14 features 8 inputs for simultaneously recording up to 8 channels at once to meet all your studio’s recording needs. The (4) dedicated XLR/TRS Mic/Line combo inputs with Crystal Preamps™ and phantom power are perfect for recording a vocals, mic’ing up an acoustic guitar, vintage guitar or bass amp or the core elements of a drum kit. The (2) ¼” dedicated Instrument inputs use specially designed to provide the cleanest signal from your guitar, bass or keyboard, while the (2) ¼” dedicated Line inputs provide a pure uncolored signal for connecting a tube preamp, keyboard, synth or mixer, and MIDI input and output for connecting any of your boutique synth gear.

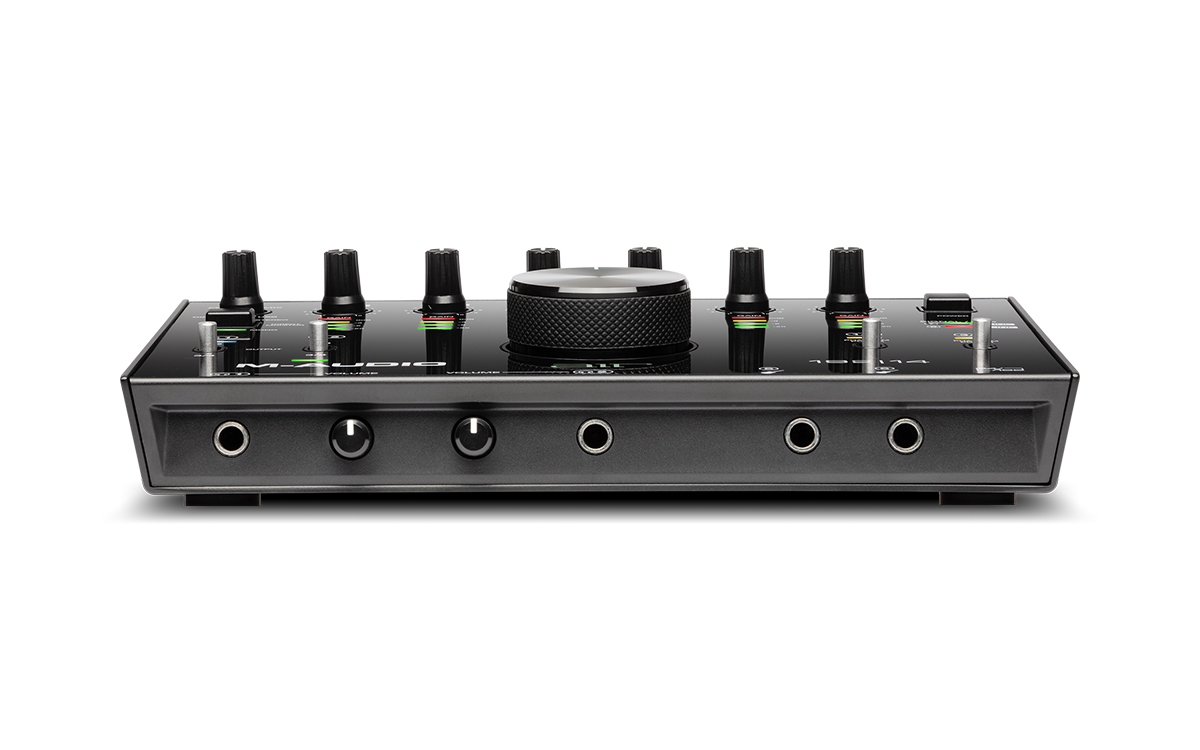

At the center of the AIR 192|14 is a large metal monitor volume knob with inlayed rubberized diamond textured comfort grip for dialing in your studio monitor’s volume, and smoothly referencing your mix at both high and low levels. The monitor and headphone outputs feature a direct mono/stereo switch and direct/USB mix knob. The (2) ¼” headphone outputs have independent volume controls, and source select switches let you create mixes to suit your and your artist’s needs. In addition to the (2) ¼” rear panel monitor outputs, the AIR 192|14 offers an additional (2) ¼” outputs for connecting outboard gear.
Our engineers designed the Crystal Preamps to provide engineers, producers and musicians with a transparent, low-noise preamp that guarantees the best sound from your microphones and captures your performance exactly the way you intended. The AIR 192|14 incorporates pristine A/D converters to provide 24-bit resolution digital audio for explosive dynamic range that captures every nuance and subtlety of your performance.
When capturing a performance, you want to get the best levels possible. With the AIR 192|14’s segmented input VU LEDs (-20db through 0dB), you can dial in the perfect gain setting every time, so there’s no more guessing how close or far away you are from optimizing your signal.
Standard USB 2.0 or USB-C Port
Windows: 7 (32 or 64 bit)
OSX: 10.8
Consult support.m-audio.com for current software system requirements
Mic Inputs 1-4 (balanced XLR) | |
Frequency Response | 20 Hz – 20 kHz (+/-0.2 dB) |
Dynamic Range | 113 dB (A-weighted) |
THD+N | 0.003% |
Preamp EIN | -137 dBu (40 Ω source, A-weighted) -129 dBu (150 Ω source, unweighted) |
Max Input Level | +14 dBu |
Gain Range | 62 dB |
Line Inputs 1-4 (balanced 1/4" [6.35 mm] TRS) | |
Frequency Response | 20 Hz – 20 kHz (+/-0.1 dB) |
Dynamic Range | 113 dB (A-weighted) |
THD+N | 0.001% (1 kHz, +4 dBu, -1 dBFS) |
Max Input Level | +30 dBu |
Gain Range | 61 dB |
Inst Inputs 5-6 (unbalanced 1/4" [6.35 mm] TS) | |
Frequency Response | 20 Hz – 20 kHz (+/-0.1 dB) |
Dynamic Range | 110 dB (A-weighted) |
THD+N | 0.001% (1 kHz, +4 dBu, -1 dBFS) |
Max Input Level | +16 dBu |
Input Impedance | ~1 MΩ |
Gain Range | 59 dB |
Fixed Line Inputs 7–8 (balanced 1/4" TRS) | |
Dynamic Range | 113 dB (A-weighted) |
THD+N | 0.001% (1 kHz, +4 dBu, -1 dBFS) |
Frequency Response | 20 Hz – 20 kHz (+/-0.1 dB) |
Max Input Level | +17 dBu |
Line Outputs 1–2 (balanced 1/4" TRS) | |
Dynamic Range | 112 dB (A-weighted) |
THD+N | 0.002% (1 kHz, -1 dBFS) |
Frequency Response | 20 Hz – 20 kHz (+/-0.2 dB) |
Maximum Output Level | +17 dBu |
Fixed Line Outputs 3–4 (balanced 1/4" TRS) | |
Dynamic Range | 113 dB (A-weighted) |
THD+N | 0.002% (1 kHz, -1 dBFS) |
Frequency Response | 20 Hz – 20 kHz (+/-0.2 dB) |
Maximum Output Level | +17 dBu |
Headphone Outputs (stereo 1/4") | |
Dynamic Range | 111 dB (A-weighted, 32 Ω load) |
THD+N | 0.002% (1 kHz, -1 dBFS, 10 mW/channel into 32 Ω load) |
Frequency Response | 20 Hz – 20 kHz (+/-0.2 dB) |
Maximum Power Delivered | 160mW (<1% THD, 32 Ω load) |
Maximum Output Level | +15 dBu (unloaded) |
Impedance Range | 32 Ω – 600 Ω |
General | |
Other Connectors | (1) 1/8” (3.5 mm) MIDI input (1) 1/8” (3.5 mm) MIDI output (1) USB Type-C port (1) Power adapter input |
Power Adapter | 12 VAC, 2 A, center-positive (included) |
Dimensions (width x depth x height) | 10.2" x 7.3" x 3.6" (25.9 x 18.6 x 9.1 cm) |
Weight | 3.9 lbs. 1.8 kg |
Ableton Live Lite is one of the most popular performance and production programs available in the world. A powerful music creation tool, Ableton Live Lite enables musicians and producers to spontaneously compose, record, remix, improvise, and edit musical ideas in a fluid audio/MIDI environment. Explore sonic possibilities in real time whether on stage or in the studio. When you are satisfied with your work, Ableton Live Lite lets you save it or mix it down.
Whatever you set out to achieve, MPC Beats will get you started. Incorporating the finest parts of the legendary MPC workflow, MPC Beats features all the essential tools for pro production. Edit samples, mixdown your tracks, find any sound with the synth engines found on the legendary MPCs, record audio and much more. MPC Beats will host your AU/VST plugins so as you expand your arsenal, know you’ll have complete compatibility with industry standard virtual studio technology.
The AIR Creative FX Collection Plus features 28 effects that are used by some of the world’s most respected audio professionals. AIR Creative FX Collection Plus has been featured in many of the last decade’s top film, game and music projects. Each plugin has been expertly designed with ease of use in mind and will ensure professional results each time.
This exclusive and diverse collection delivers everything you need for creative production, mixing and mastering, including reverbs, compressors, equalizers, delays, filters and so much more.
80 effect plug-ins provided by AIR
Included are some extra goodies to help out any podcaster, guitarist, or producer. This exclusive and diverse collection delivers everything you need for creative production, mixing and mastering, including reverbs, equalizers, delays, filters and so much more.
A new standard for guitar amplifier modeling software
ReValver includes ValveKing® & Custom Lite Amp Modules, 3 x cabs, 3 x mics (with multiple selectable positions), and 3x effects.
Strike is a dynamic drum and arranger instrument that features a world-class sample library and a hyper-realistic performance engine. Strike puts you in the producer’s chair, enabling you to create, control, and produce professional drum tracks with uncanny human realism. With its proprietary technology, Strike surpasses conventional MIDI programming and drumming sampling when it comes to computer-based playing, arranging, and mixing of drums. Use Strike to play a seamless crescendo, switch drum kits from ballad to crushed punk, or tweak the tuning of the snare drum. Each instrument was recorded with up to three close, two overhead, and two room microphones. Strike also provides a full mixing console, complete with built-in effects.
Hybrid 3.0 is the next generation in synthesis. This high-definition virtual synthesizer combines the coveted warmth of analog synths with a full range of futuristic digital manipulation capabilities. The result is the best of both worlds — a virtual instrument with a comprehensive set of precisely adjustable parameters that can sound like a synth you remember or something no one has ever heard before.
AIR Music’s Mini Grand is a simple-to-use yet powerful virtual piano instrument with seven different acoustic piano sounds to suit a broad range of musical styles and production needs. Combining premium quality piano samples, innovative re-pedaling technology, built-in room simulation and equal and stretched tuning, Mini Grand is the go-to plugin for authentic, emotive piano sounds.
DB-33 Tonewheel Organ is a virtual organ that recreates the sounds and controllability of classic tonewheel organs such as the Hammond B3, and the rotary-speaker cabinets they are often played through. It includes 122 preset sounds plus an extra-realistic convolution rotary cabinet and tube overdrive emulation. The rotary-speaker cabinet can also be used as an effect in its own right on an audio track.
AIR Music’s Xpand!2 is a multitimbral workstation offering four active sound slots, or parts, per patch. Each part is provided with its own MIDI channel, Note Range (Zone), Mix, Arpeggiation, Modulation, and Effects settings—an excellent method for creating individual parts. Harnessing the four parts together to build one amazing Patch is where Xpand!2 reveals its true power. Using everything from wavetables and FM synthesis to sample playback, the expert sound design team at Air Music Tech has carefully created thousands of ready-to-play Xpand!2 patches.
AIR TubeSynth
The AIR TubeSynth plugin emulates the sound of vintage analog polyphonic synthesizers. Dive into a collection of warm pads, brass synths, and so much more in this massive collection of synthesizer presets.
AIR Electric
AIR Electric plugin is your total electric piano collection on MPC. Choose from a wide collection of keyboards like Rhodes, Wurlitzers, FM keyboards, and more. Dedicated control sections provide deep virtual control over keyboard pickups, envelope, bell and noise settings, and much more.
AIR Bassline
The AIR Bassline plugin emulates the sound of classic monophonic synthesizers. Create your own unique synth patches with the integrated AIR effects sections.
Chop up and mix 2 gigs of samples ranging from deep ambient synth pad loops to vintage drum one shots. These are all designed to inspire your music production and provide professional sounding samples that will shine in your mix. Touch Loops perfectly captures the tone and intensity of each sample, so they enhance and complement any song, wherever you use them. This incredible value can be found in your M-Audio account, ready to be downloaded and chopped to your liking!
